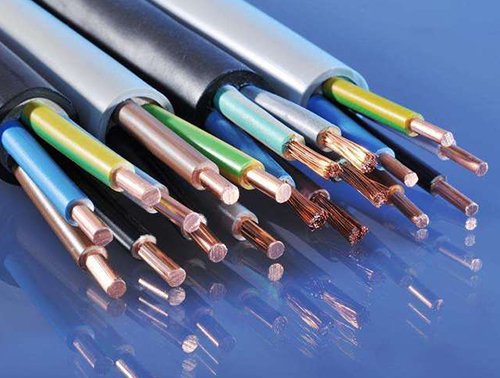

Control cables are the lifelines of industrial automation, robotics, and smart manufacturing systems, transmitting critical signals for precise operation. However, improper connections can lead to signal distortion, electromagnetic interference (EMI), or even catastrophic equipment failures. This article outlines best practices for connecting control cables to ensure reliable performance and longevity.
1. Cable Selection and Compatibility
The foundation of error-free connections lies in selecting cables that match the application’s electrical, mechanical, and environmental demands.
Signal Type: Differentiate between analog (e.g., 4–20 mA, 0–10 V) and digital signals (e.g., RS-485, CAN bus). Analog signals require shielded twisted-pair (STP) cables to minimize noise, while digital signals may need differential pairs (e.g., Cat 6A for Ethernet) for high-speed data integrity.
Voltage/Current Ratings: Ensure cables can handle the system’s voltage (e.g., 24 VDC, 230 VAC) and current (e.g., 10 A max) without overheating. Overrated cables (e.g., 1.5 mm² for 15 A circuits) reduce fire risks.
Environmental Resistance: In harsh settings (e.g., factories with oil mist or outdoor installations), use cables with IP67-rated connectors, UV-resistant jackets, and oil-resistant insulation (e.g., TPE or PUR).
Example: A robotic arm in an automotive plant uses STP cables with foil shielding and 24 AWG conductors to transmit encoder feedback signals, preventing jitter caused by motor EMI.
2. Proper Termination Techniques
Faulty terminations are a leading cause of signal errors. Follow these steps:
Stripping Length: Expose only 5–7 mm of conductor to avoid short circuits. Use a calibrated stripping tool (e.g., Knipex 12 62 180) for precision.
Crimp Quality: Use industry-standard crimping tools (e.g., Molex Hand Crimp Tool 63819-0000) to ensure gas-tight connections. Poor crimps increase resistance, causing voltage drops or heating.
Soldering (if applicable): For low-voltage analog signals, solder joints must be smooth and void-free. Avoid excessive heat that could damage cable insulation.
Strain Relief: Secure cables with cable glands (e.g., PG11 for 6–8 mm cables) or zip ties to prevent flexing at termination points, which can fracture conductors over time.
Case Study: A packaging line experienced intermittent sensor failures due to loose screw terminals. Switching to spring-clamp terminals (e.g., WAGO 221 Series) eliminated vibration-induced disconnections.
3. Shielding and Grounding Best Practices
EMI shielding is critical for analog signals and high-speed digital networks.
Shield Termination: Connect the shield to the chassis ground at one end only (typically the control panel) to avoid ground loops. Use shielded connectors (e.g., D-sub with metal backshells) and ensure 360° contact between the shield and connector body.
Grounding Resistance: Measure ground resistance with a multimeter (e.g., Fluke 87V) to ensure it’s <1 Ω. High resistance can turn shields into antennas, amplifying interference.
Cable Routing: Keep control cables at least 150 mm away from power cables (300 mm for high-current motors) to reduce capacitive coupling. Use cable trays with separators for mixed-signal installations.
Example: A CNC machine’s spindle encoder errors dropped by 90% after re-routing its STP cable away from a 400 V motor cable and grounding the shield at the drive end only.
4. Testing and Validation
Post-installation testing is non-negotiable:
Continuity Test: Use a continuity tester (e.g., Klein Tools VDV501-100) to verify all conductors are intact.
Insulation Resistance: Measure insulation resistance between conductors and shield (e.g., ≥100 MΩ at 500 VDC) with a megohmmeter (e.g., Fluke 1587).
Signal Integrity: For digital networks, check eye diagrams with an oscilloscope (e.g., Tektronix MDO3104) to confirm minimal jitter. For analog signals, use a multimeter to verify voltage levels match specifications.
