How to Ensure High Anti-Interference and Stability in Control Cable Development for Complex Industrial Environments

2025-08-11 10:52:03

In modern industrial automation, control cables serve as the nervous system of machinery, transmitting critical signals for motor control, sensor feedback, and safety systems. However, complex environments—filled with electromagnetic interference (EMI), mechanical stress, and extreme temperatures—pose significant challenges to cable reliability. This article outlines key strategies for developing control cables that maintain stability and resist interference in harsh industrial settings.

1. Shielding Design: The First Line of Defense Against EMI

Effective shielding is paramount for isolating control signals from external noise sources like variable frequency drives (VFDs), arc welders, or radio-frequency (RF) equipment.

Braided Copper Shielding: For moderate EMI environments (e.g., general machinery), use a tinned copper braid with ≥85% coverage. Tinned shields resist corrosion, ensuring long-term conductivity.

Aluminum/Polyester Tape + Braid Combination: In high-noise areas (e.g., near servo motors), combine a 100% aluminum-polyester foil shield with a 30–40% copper braid. The foil blocks high-frequency interference, while the braid handles low-frequency noise.

Double-Shielded Construction: For ultra-sensitive applications (e.g., PROFINET or EtherCAT networks), employ dual shielding—a foil layer directly over conductors and a braided outer layer. This reduces crosstalk by >40 dB at 100 MHz.

Example: A automotive assembly line’s robotic arm suffered intermittent position errors due to VFD-induced EMI. Replacing standard cables with double-shielded variants (foil + braid) eliminated signal glitches, improving cycle time reliability by 99.2%.

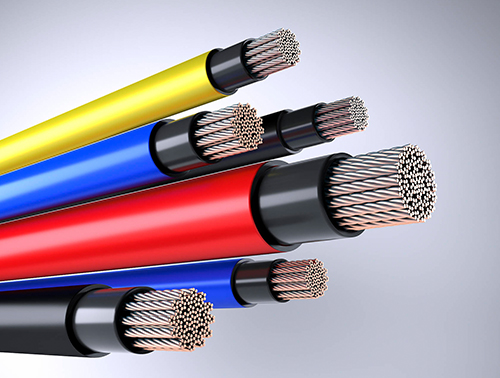

2. Conductor and Insulation Materials: Balancing Flexibility and Durability

Industrial cables must withstand bending, vibration, and temperature extremes without degrading signal quality.

Stranded Conductors: Use fine-stranded copper (e.g., Class 6 per IEC 60228) with ≥0.08 mm² strands for flexibility. Avoid solid conductors, which fracture under repeated flexing.

Cross-Linked Polyethylene (XLPE) Insulation: XLPE offers superior dielectric strength (600 V vs. PVC’s 300 V) and thermal stability (-40°C to +120°C), making it ideal for motor control cables exposed to heat.

Thermoplastic Elastomer (TPE) Jackets: TPE resists oils, chemicals, and UV radiation better than PVC. For food-grade applications, opt for NSF-certified TPE compounds.

Case Study: A steel mill’s conveyor system used PVC-insulated cables, which melted during a motor overload. Switching to XLPE-insulated cables with a TPE jacket extended service life to 5+ years, even at 105°C ambient temperatures.

3. Mechanical Design: Mitigating Stress and Abrasion

Physical robustness prevents premature failure in dynamic environments.

Bend Radius Optimization: Design cables with a minimum bend radius ≥6× the outer diameter (OD). For drag chain applications, use cables rated for 10 million flexing cycles (e.g., Igus CHAINFLEX series).

Abrasion-Resistant Jackets: Add a 0.5–1 mm thick polyurethane (PUR) outer layer for cables exposed to friction (e.g., robotic arms). PUR offers 3× the abrasion resistance of PVC.

Strain Relief: Incorporate molded strain relief boots at both ends to distribute pulling forces evenly. For high-vibration areas, use metal-clad connectors (e.g., M12 circular connectors with spring locks).

4. Testing and Certification: Validating Performance Under Real-World Conditions

Rigorous testing ensures cables meet industrial standards like IEC 61914 (cable cleats) or UL 2556 (wire and cable testing).

EMI Susceptibility Testing: Expose cables to 10 V/m RF fields (30 MHz–3 GHz) per IEC 61000-4-3 to verify signal integrity.

Thermal Cycling: Subject cables to -40°C to +85°C cycles (1,000×) to detect insulation cracking or shield delamination.

Mechanical Fatigue Testing: Simulate 1 million flexing cycles at 180° bends to predict lifespan in drag chains.
